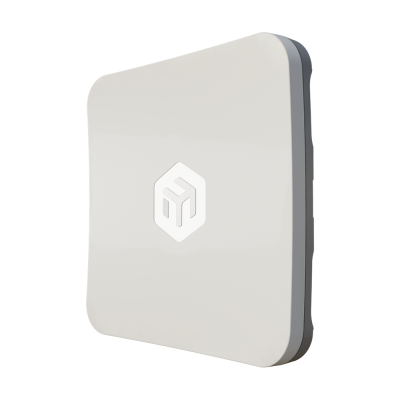

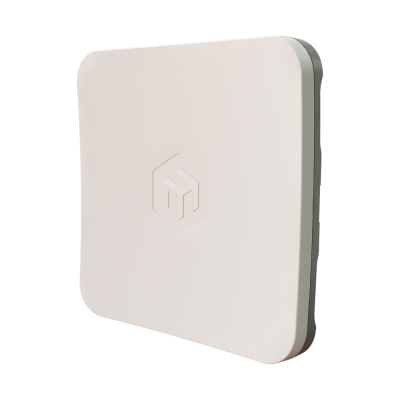

SXTsq 5 ax A compact outdoor Wi-Fi 6 CPE with a powerful 16 dBi antenna, AP mode, and multiple mounting options perfect for masts, poles, or rooftop deployments.
Meet the SXTsq 5 ax our first Wi-Fi 6 outdoor CPE, combining the best wireless technology with our trusted, compact SXTsq form factor.
Despite the upgrade to Wi-Fi 6 and a modern ARM-based dual- core CPU, this unit keeps the same price point as our previous Wi-Fi 5 model making it one of the best-value weatherproof CPEs on the market.

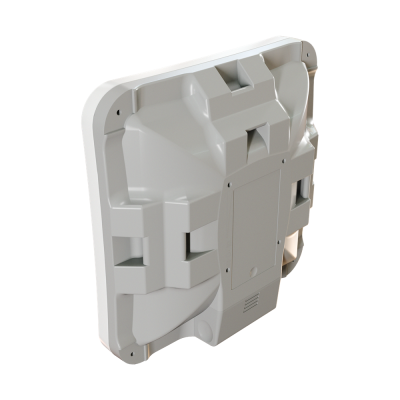

The enclosure can withstand all sorts of unpredictable weather hazards, and it features slots for directly attaching a hose clamp in three different mounting positions, including support for horizontal railings ideal for masts and poles in rooftop or tower deployments.
Field-tested up to 3 km in high-interference, urban scenarios. Designed with the same trusted long-range architecture as previous SXT models capable of 10+ km links in line-of-sight deployments.
With RouterOS license level 4, the SXTsq 5 ax isnt just a client it can also be configured as a powerful access point, giving you more flexibility in planning your wireless infrastructure. And thanks to its compact square shape, it fits neatly into even the most space- sensitive deployments.
Specifications
| Details |
|---|
| Product code | SXTsq-5axD |
| Architecture | ARM 32bit |
| CPU | IPQ-5010 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 256 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $65.00 |
Powering
| Details |
|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| PoE in | Passive PoE |
| Cooling type | Passive |
| PoE in input Voltage | 12-28 V |
Wireless specifications
| Details |
|---|
| Wireless 5 GHz Max data rate | 1200 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | QCN-6102 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 1 |
Other
| Details |
|---|
| CPU temperature monitor | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | 55 |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 24 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 24 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
| MCS11 | 16 | -67 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | | |
| 11MBit/s | | |
| 6MBit/s | | |
| 54MBit/s | | |
| MCS0 | | |
| MCS7 | | |
| MCS9 | | |
| MCS11 | | |
Included parts
 |
|
|
|
|
| 24V 0.38A power adapter | Gigabit PoE injector | Hose clamp 1 | | |
