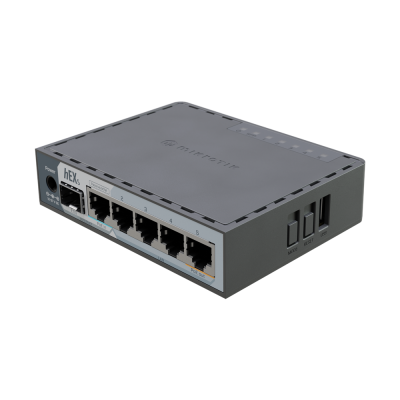

hEX S (2025)A compact, affordable wired router featuring a 2.5G SFP port, 5x Gigabit Ethernet, PoE out, USB, and a fast dual-core CPU ideal for homes, offices, or underfunded labs that need reliable performance.
Need a wired router that wont slow you down or drain your budget? The new hEX S is a compact, truly budget-friendly device that does a little bit of everything and does it fast. Whether youre building a smart home, running a local lab, or just want a clean, powerful wired setup, this is your new Ethernet essential.

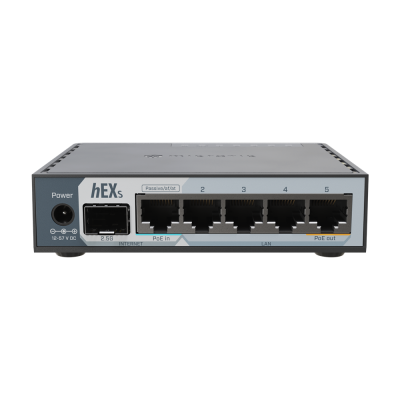

With 5× Gigabit Ethernet ports (including PoE-in on port #1 and PoE-out on port #5), plus a 2.5 Gigabit SFP cage, this compact router can adapt to many roles. And unlike most ISP boxes, you can assign any port as WAN, LAN, or bridge full flexibility right out of the box. Thats just the beginning. RouterOS v7 gives you advanced routing, VLANs, bonding, traffic shaping, and more so you can build the wired network youve always wanted.
Specifications
| Details |
|---|
| Product code | E60iUGS |
| Architecture | ARM |
| CPU | EN7562CT |
| CPU core count | 2 |
| CPU nominal frequency | 950 MHz |
| Switch chip model | EN7562CT |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 512 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details |
|---|
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 23 W |
| Max power consumption without attachments | 5 W |
| PoE in | 802.3af/at |
| Cooling type | Passive |
| PoE in input Voltage | 18-57 V |
PoE-out
| Details |
|---|
| PoE-out ports | Ether5 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 0.5 A |
| Max out per port output (input 30-57 V) | 0.5 A |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 5 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details |
|---|
| SFP ports | 1 (2.5G supported) |
Peripherals
| Details |
|---|
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB 3.0 type A |
| Max USB current (A) | 1 |
Other
| Details |
|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Details |
|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
Included parts
 |
|
|
|
|
| 24V 1.2A power adapter |
|
| | |
