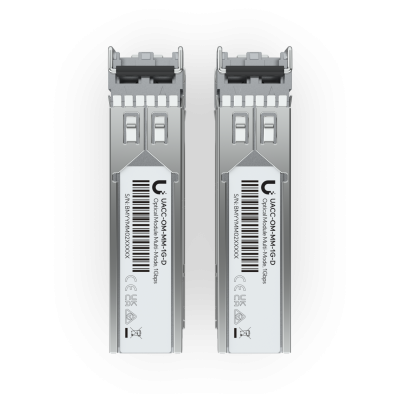

1G Multi-Mode Optical Module
SKU : UACC-OM-MM-1G-D-2
2-Pack
฿1,350
Quantity
Short Description
UBIQUITI UniFi UACC-OM-MM-1G-D SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector.
Brands: UBIQUITI
Wishlist
Product description
Datasheet
Features
- Max data rate: 1 Gbps
- Compatible with SFP interfaces
- Duplex LC UPC connector
- Supports multi-mode fiber connections up to 550 m*
*Fiber cable is not included.
Technical Specification
| Supported media | Multi-mode fiber |
| Connector type | (2) LC |
| TX wavelength | Black latch: 850 nm |
| RX wavelength | Black latch: 850 nm |
| Data rate | 1 Gbps |
| Max. power consumption | 0.66W |
| Cable distance | 550 m |
| Ambient operating temperature | 0 to 70° C (32 to 158° F) |
| WARNING | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 Do not look into the ends of the fiber optic cable or SFP module while converters are powered. |
Technical Specifications Reference from : https://techspecs.ui.com
